NonFerrous Alloy - PT DHARMA METAL INDONESIA

Zinc Shot

Kategori	Nama Barang	Detail Barang	Size
zinc shot		ZINC SHOOT	0,8

Specifications

Commodity

Zinc Shot

Stainless Steel Shot

Kategori	Nama Barang	Detail Barang	Size
stainless steel shot	MEDIA BLASTING	STANLESS STEEL CUT WIRE	SUS304 0,5
			SUS430 0,4
			SUS430 0,6
		STANLESS STEEL SHOT	0,3
			0,4
			0,6
			0,8
			0,1
			430 0,4
			430 0,6
			430 0,8
		STEEL CUT WIRE	0,5
			0,6
			0,8
		STEEL GRIT	GL 18
			GL25
			S230
			GH40
			GL40
			GL50
		STEEL SHOT	S170
			S230
			S110
			S280
			S390
			S460
			S550
			S780

Package 25Kgs per bag x 40 bags/big bag			Name Of Commodity
			STEEL GRIT GL40 3MT STEEL SHOT S390						12 MT
			STANLESS STEEL SHOT SUS 304 0.6mm G3						3MT
			STANLESS STEEL SHOT SUS 430 0.6mm G3						2MT
			STANLESS STEEL SHOT SUS 430 0.8mm G3						3MT
			STANLESS STEEL SHOT SUS 430 1.0mm G3						2MT
The Inspecting Result
	External Form		Fine,angular/ conditioned
Physical impection	Hardness(on average)		GL40 :HRC58.6;				S390 : HRC46.6;
			SUS304 0.6mm : HRC45.2				SUS430 0.6mm : HRC30.5;
			SUS430 0.8mm :HRC 30.9				SUS430 1.0mm : HRC31.2;
		Screen Size(mm)	1.70	1.40	1.18	1.00	0.85	0.425	0.300
		GL40				0		90.7	99.0
		S390	0	0.6		99.3	99.7
		SUS 304 0.6mm	0.6 ± 0.05
		SUS 430 0.6mm	0.6 ± 0.05
		SUS 430 0.8mm	0.8 ± 0.05
		SUS 430 1.0mm	1.0 ± 0.05
Chemical Impertion	Element Content		Cr	Ni	C	Si	Mn	S	P
	GL40		/	/	0.86	0.48	0.61	0.031	0.023
	S390		/	/	0.88	0.48	0.60	0.028	0.022
	SUS 304 0.6mm		18.1	8.1	0.068	0.70	1.15	0.012	0.035
	SUS 430 0.6mm		16.19	/	0.023	0.65	0.31	0.023	0.025
	SUS 430 0.8mm		16.18	/	0.024	0.68	0.32	0.025	0.0280
	SUS 430 1.0mm		16.21	/	0.023	0.70	0.34	0.018	0.022
Remarks

Specifications

Commodity

Stainless Steel Shot

Aluminium Melt Treatment (ALTI)

Kategori	Nama Barang	Detail Barang	Size
alumunium melt treatment	ALLOYING	AL. BORON 8 ALLOY
		AL. TITANIUM BORON	5.1 (COIL)
		AL. TITANIUM BORON	5.2 (COIL)
		ALUMUNIUM SILICON	20%
		ALUMUNIUM SILICON	21%

Pallet No	Batch Number	Chemical Composition
		Ti	Si	Fe	V	AI
		9-11%	0.30% max	0.30% max	0.20% max	Balance
24/27	22100501	10.22	0.09	0.15	0.019	Balance
25/27	22100502	9.93	0.08	0.16	0.026	Balance
26/27	22100503	10.07	0.07	0.17	0.021	Balance
27/27	22100504	10.34	0.09	0.16	0.029	Balance

Specifications

Commodity

ALTI

Aluminium Melt Treatment (ALTIB5)

Kategori	Nama Barang	Detail Barang	Size
alumunium melt treatment	ALTAB	AL CR75
		AL TAB FE 80% AL
		AL TAB FE 80% FLUX
		AL TAB MN 80% AL
		AL TAB MN 80% FLUX
		AL TAB TI 80% FF

Pallet No	Batch Number	Chemical Composition
		Ti	B	Si	Fe	V	AI
		4.5-5.5%	0.9-1.1%	0.30% max	0.30% max	0.20% max	Balance
1/42	23052301	5.02	0.98	0.06	0.09	0.015	Balance
2/42	23052301	4.95	1.01	0.07	0.10	0.018	Balance
3/42	23052302	5.16	0.95	0.06	0.09	0.016	Balance
4/42	23052302	5.03	1.03	0.08	0.11	0.017	Balance
5/42	23052303	4.94	1.01	0.06	0.12	0.019	Balance
6/42	23052303	5.05	0.96	0.07	0.10	0.018	Balance
7/42	23052304	4.85	0.97	0.06	0.09	0.017	Balance
8/42	23052304	5.11	1.02	0.05	0.10	0.018	Balance
9/42	23052305	5.07	0.99	0.06	0.08	0.018	Balance
10/42	23052305	4.96	1.05	0.07	0.09	0.019	Balance
11/42	23052306	5.01	1.02	0.06	0.10	0.019	Balance

Specifications

Commodity

ALTIB5

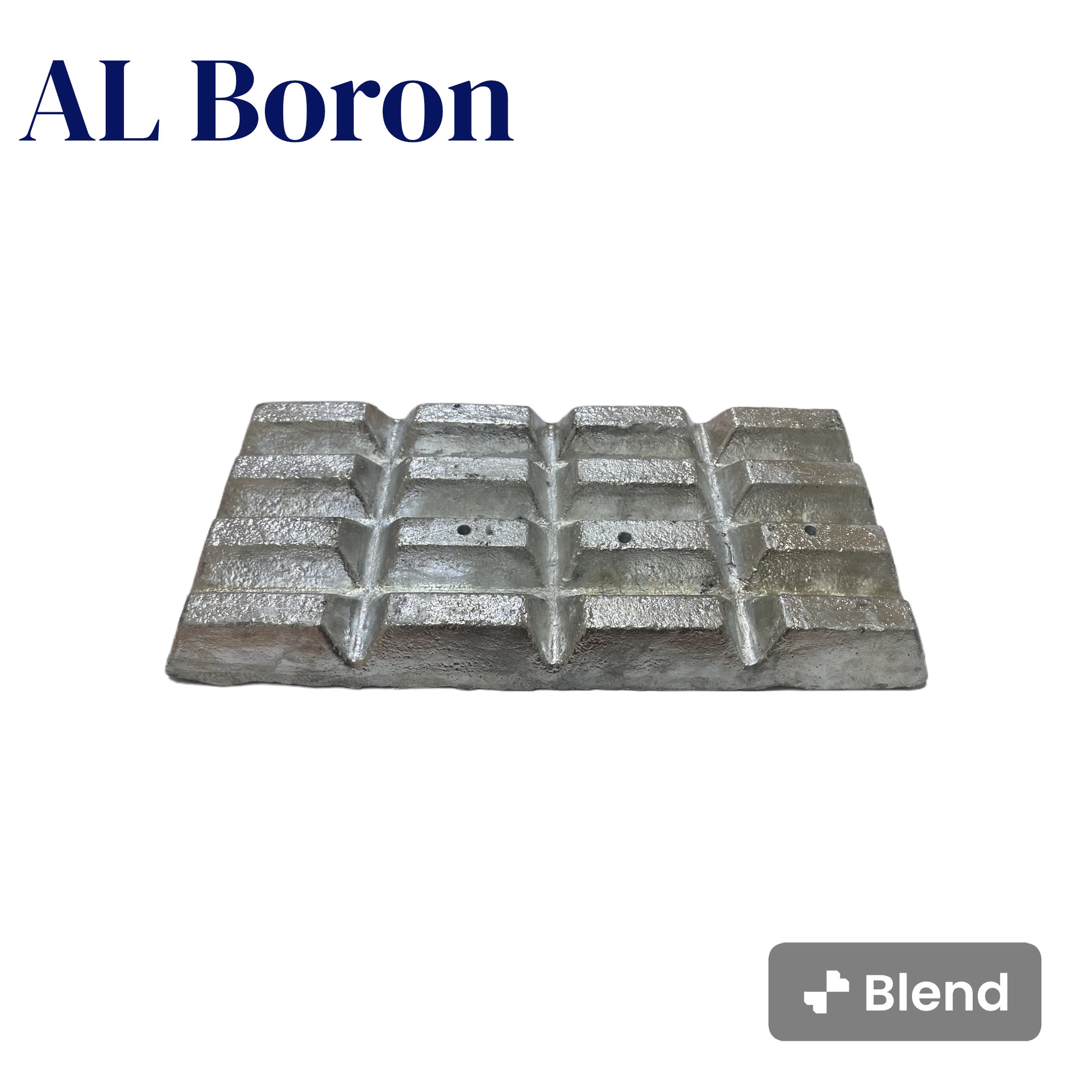

Aluminium Melt Treatment (ALB8)

Kategori	Nama Barang	Detail Barang	Size
alumunium melt treatment	ALLOYING	AL. BORON 8 ALLOY
		AL. TITANIUM BORON	5.1 (COIL)
		AL. TITANIUM BORON	5.2 (COIL)
		ALUMUNIUM SILICON	20%
		ALUMUNIUM SILICON	21%

Pallet No	Batch Number	Chemical Composition
		B	Fe	Si	Y	AI
		Min 7%
		Max 9%	Max 0.40%	Max 0.30%	Max 0.10%	Balance
9/28	23030301	8.02	0.19	0.15	0.016	Balance
10/28	23030302	7.83	0.19	0.14	0.019	Balance
11/28	23030303	8.12	0.18	0.11	0.018	Balance
12/28	23030304	8.04	0.17	0.08	0.027	Balance
13/28	23030305	7.95	0.21	0.14	0.024	Balance
14/28	23030401	8.24	0.16	0.17	0.017	Balance
15/28	23030402	8.33	0.15	0.07	0.015	Balance
16/28	23030403	7.76	0.19	0.16	0.023	Balance
17/28	23030404	8.17	0.17	0.12	0.033	Balance
18/28	23030405	8.41	0.15	0.14	0.026	Balance
19/28	23030501	7.99	0.22	0.18	0.022	Balance
20/28	23030502	8.05	0.18	0.12	0.024	Balance
21/28	23030503	8.14	0.19	0.1	0.028	Balance
22/28	23030504	8.07	0.17	0.13	0.018	Balance
23/28	23030505	7.92	0.19	0.17	0.017	Balance

Specifications

Commodity

ALB8

ALP

Composition	Main Content of Alloy Elements (wt%)			Impurities (wt%)		Matrix	Remark
	P	Fe	Si	Mn	Others	AI	Customer Spesific Product
	4-5	1.5-2.5	10-12	0.5-1.5	0.3 max	Balance
Actual Content	4.7	1.7	11.2	0.5	0.23	Balance

Specifications

Commodity

ALP

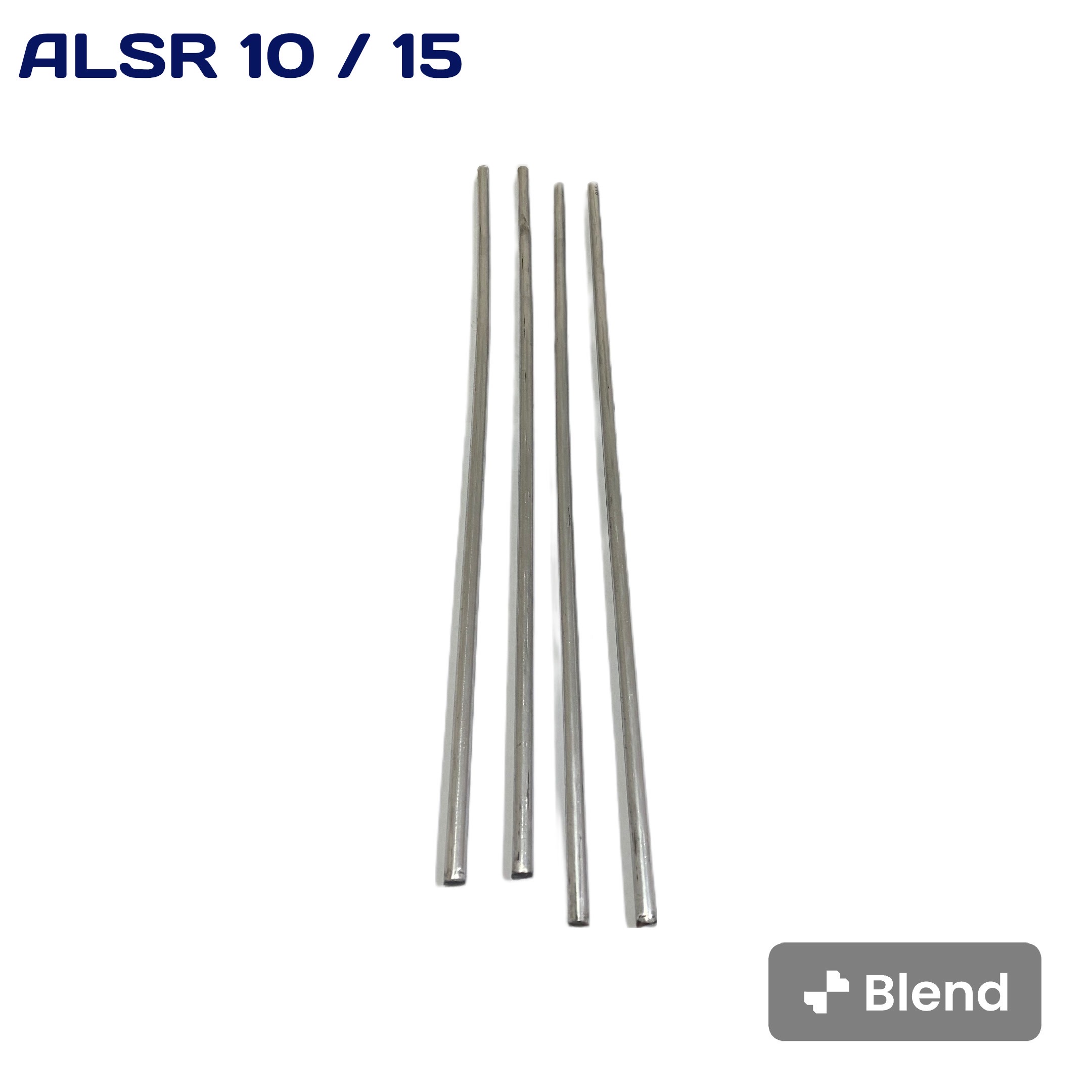

ALSR

Kategori	Nama Barang	Detail Barang	Size
alumunium melt treatment	ALLOYING	AL. BORON 8 ALLOY
		AL. TITANIUM BORON	5.1 (COIL)
		AL. TITANIUM BORON	5.2 (COIL)
		ALUMUNIUM SILICON	20%
		ALUMUNIUM SILICON	21%

Pallet No	Batch Number	Inspect Content (%)
		Sr	Fe	Si	Mg	P	Ba	Pb	Sn	AI
		9-11	0.30% max	0.30% max	0.10% max	0.01 max	0.10 max	0.10 max	0.10 max	Balance
1/23	23101101	10.06	011	0.04	0.008	0.001	0.01	0.002	0.008	Balance
2/23	23101102	9.82	0.09	0.04	0.008	0.001	0.01	0.002	0.007	Balance
3/23	23101103	9.97	0.10	0.03	0.007	0.001	0.01	0.002	0.008	Balance
4/23	23101104	10.12	0.10	0.04	0.008	0.001	0.01	0.002	0.007	Balance
5/23	23101105	9.88	0.11	0.05	0.007	0.001	0.01	0.002	0.008	Balance
6/23	23101106	10.02	0.12	0.04	0.008	0.001	0.01	0.002	0.008	Balance
7/23	23101107	9.94	0.11	0.03	0.007	0.001	0.01	0.002	0.008	Balance
8/23	23101108	9.84	0.10	0.04	0.008	0.001	0.01	0.002	0.007	Balance

Specifications

Commodity

ALSR

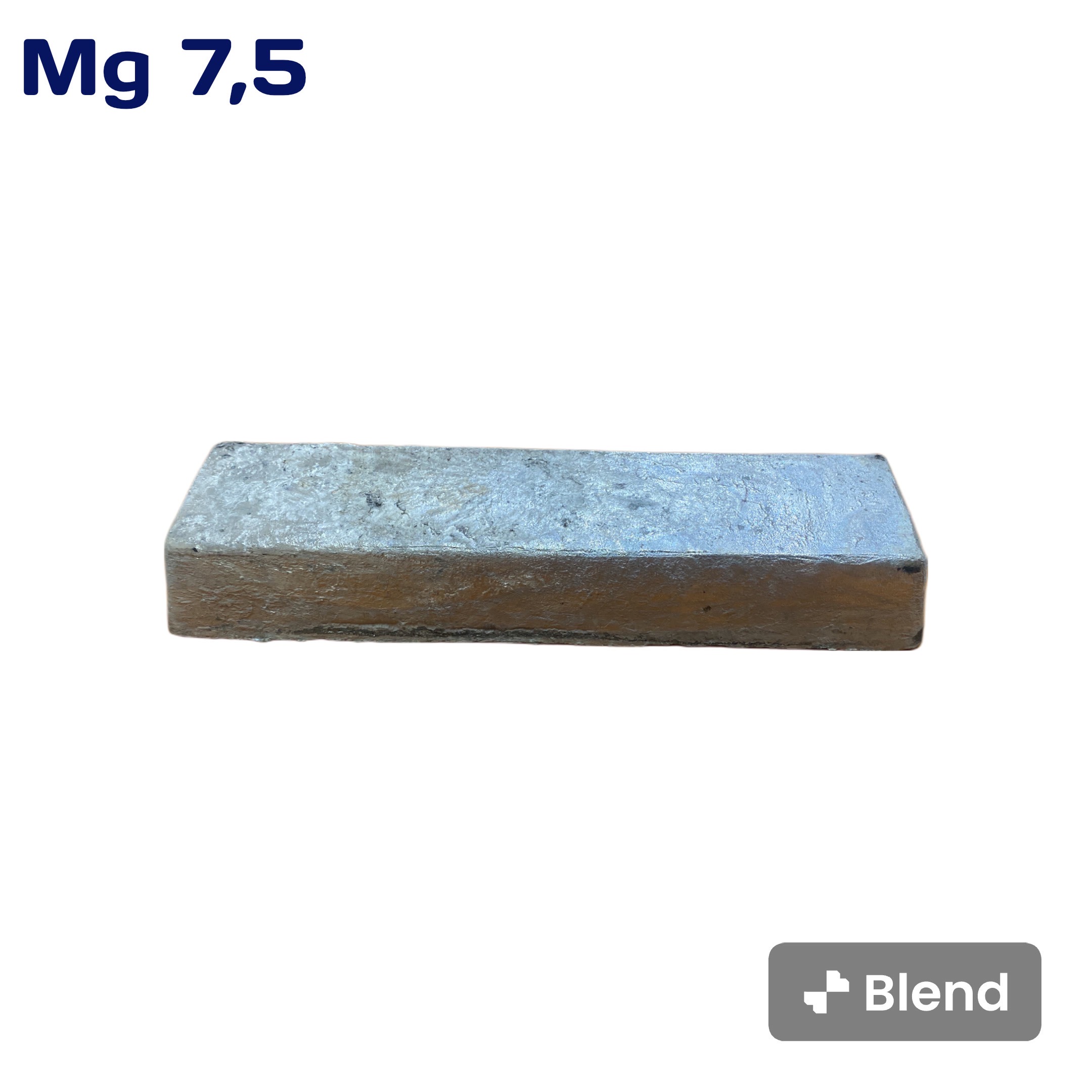

MG75

Comodity	Magnesium Ingot
CHEMICAL COMPOSITION %
Mg	Cu	Si	Ca	Fe	Mn	Ni	AI	Za
99.92	0.00151	0.0163	0.0026	0.00147	0.00152	0.00029	0.0157	0.0056
Size (mm)		7.5KG +/0.5KG
Packing		on Apriximate 125MT Magnesium Pallet Steel Straped With
		Waterprof Plastic
Quantity		25MT
Country Of Origin		CHINA
Pallet No		N.W		G.W		PIECES
1		1201		1203		160
2		1210		1212		160
3		1210		1212		160
4		1192		1194		160
5		1205		1207		160
6		1187		1189		160
7		1213		1215		160
8		1200		1202		160
9		1205		1207		160
10		1322		1324		176
11		1297		1299		176
12		1325		1327		176
13		1197		1199		160
14		1315		1317		176
15		1317		1319		176
16		1299		1301		176
17		1339		1341		176
18		1308		1310		176
19		1202		1204		160
20		1256		1258		168
Total		25000		25040		3336

Specifications

Commodity

MG75

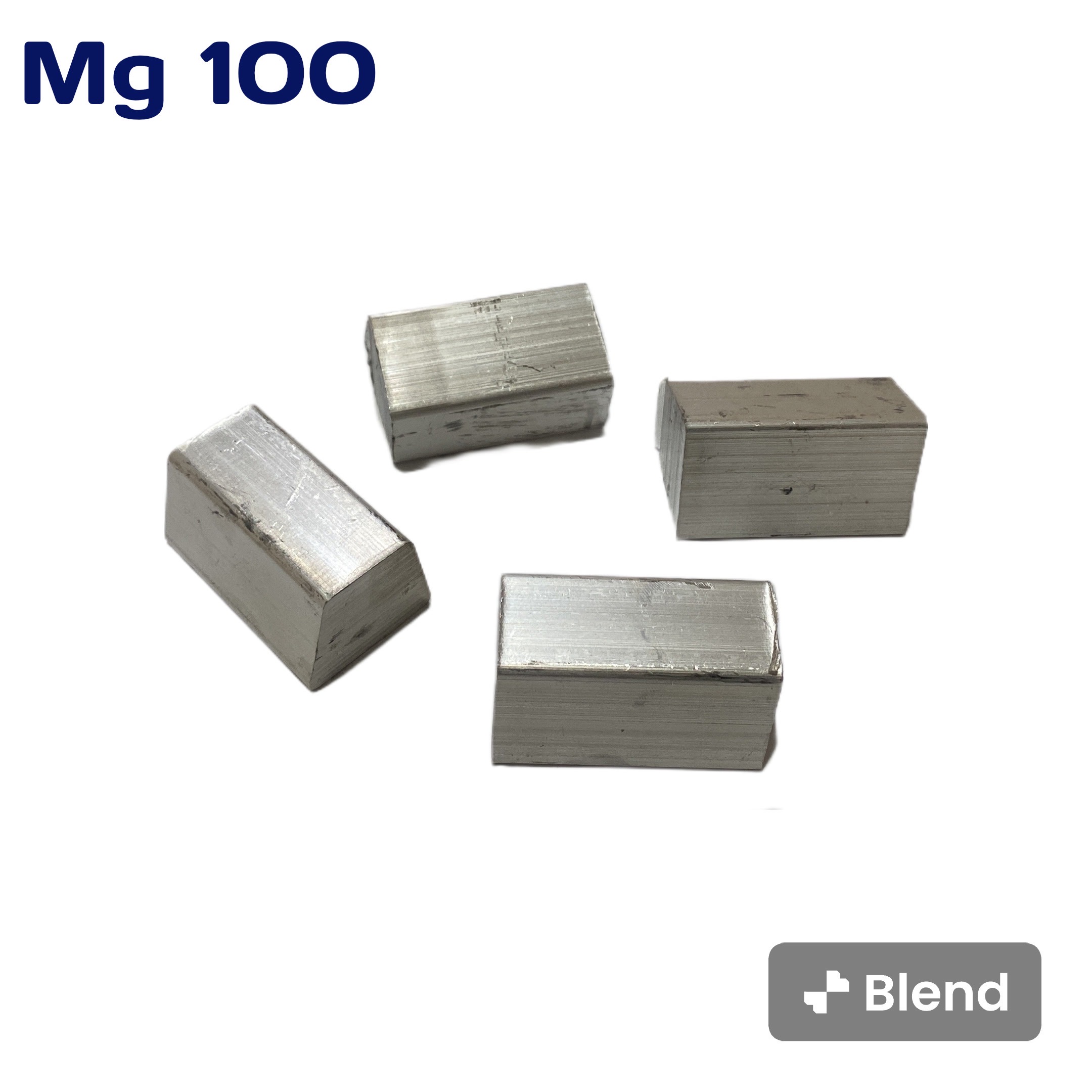

MG100

Chemical Composition %
Mg	Cu	Si	Ca	Fe	Mn	Ni	AI	Za
99.92	0.00154	0.0162	0.0027	0.00148	0.0155	0.00024	0.0137	0.0058
Size	100 gram
Package	PACKED IN IMT BIG BAG
TOTAL GROSS WEIGHT : 3006.00KGS
TOTAL NET WEIGHT : 3000.00KGS
TOTAL PACKAGES : 3 BAGS
TOTAL MEASURENMENT : 3CBM

Specifications

Commodity

MG100

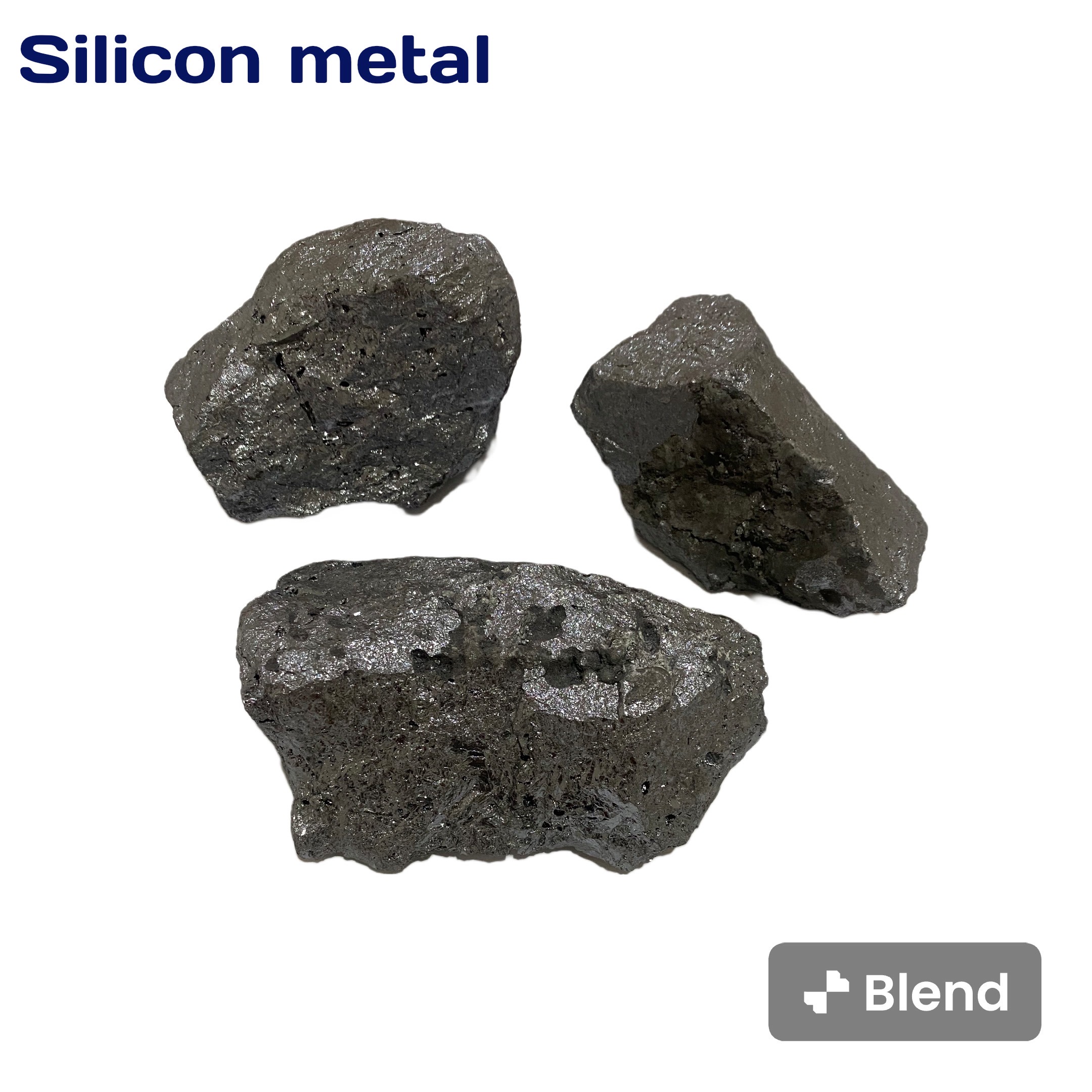

Silicon Metal

Kategori	Nama Barang	Detail Barang	Size
nonferrous alloy	SILICON METAL	SILICON METAL	331
			4403
			441
			553

Chemical Composition %
SI	98.865%	CA	0.172%
AL	0.427%	FE	0.443%
OTHER	0.093%
Size (mm)	10-100 MM 90PCT MIN
Package Bags	15 BAGS /15MT
